Protege Cartridge Mortise
Wireless Lock
PRT-WL-CM

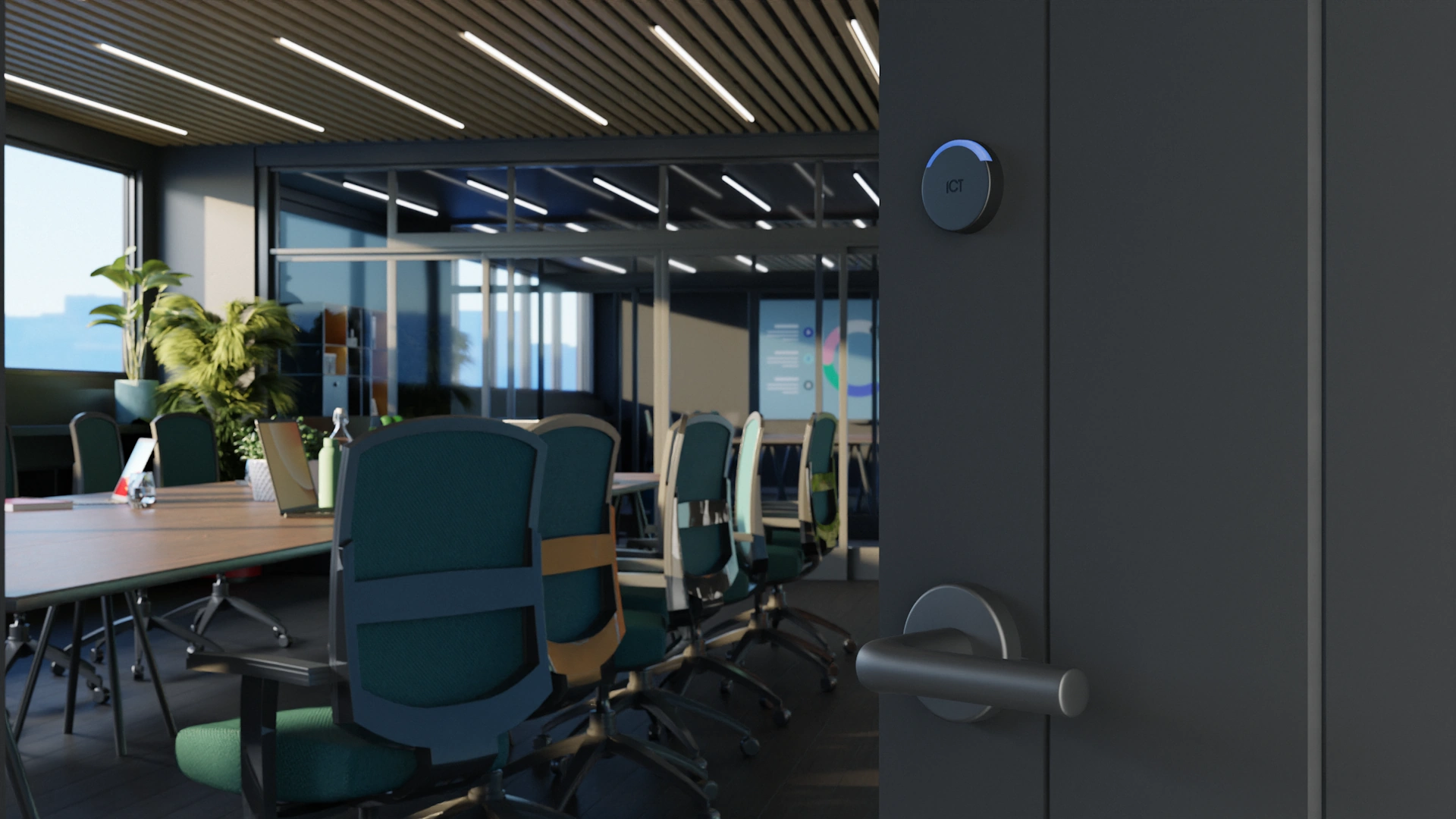

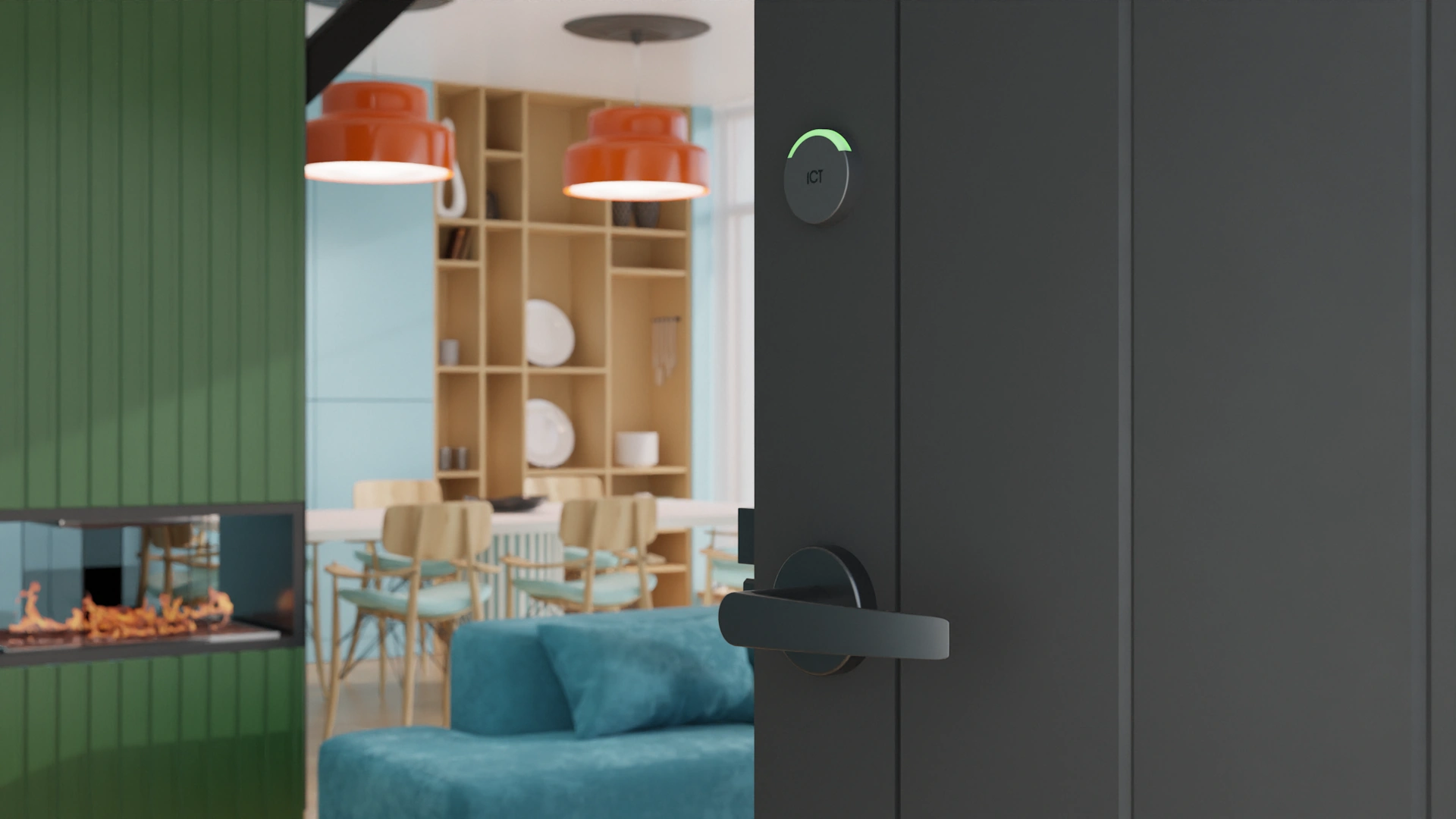

The Protege Cartridge Mortise Wireless Lock combines robust and intelligent locking technology with customizable style to suit the aesthetics of any building. A clever cartridge design with components hidden in the door provides a clean and refined door security solution.
With no cabling necessary you can deploy integrated electronic access control in areas where traditional wired locking solutions may not be possible and online connectivity may be a barrier thanks to the unprecedented flexibility wireless solutions offer, allowing businesses to reduce labor and materials costs significantly.
- Native integrated electronic access control solution
- Grade 1 electronic mortise lock meets ANSI lock standards

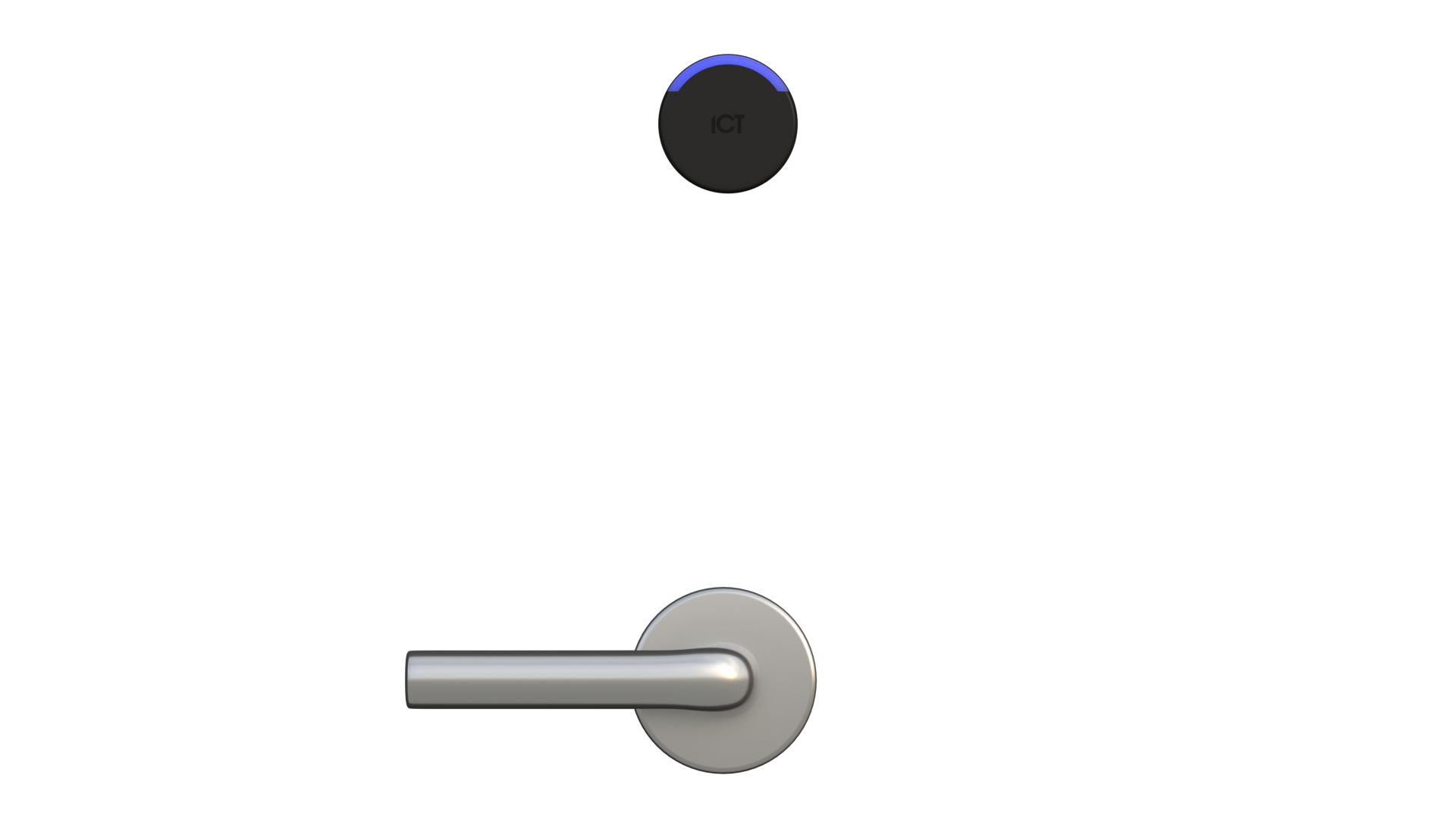

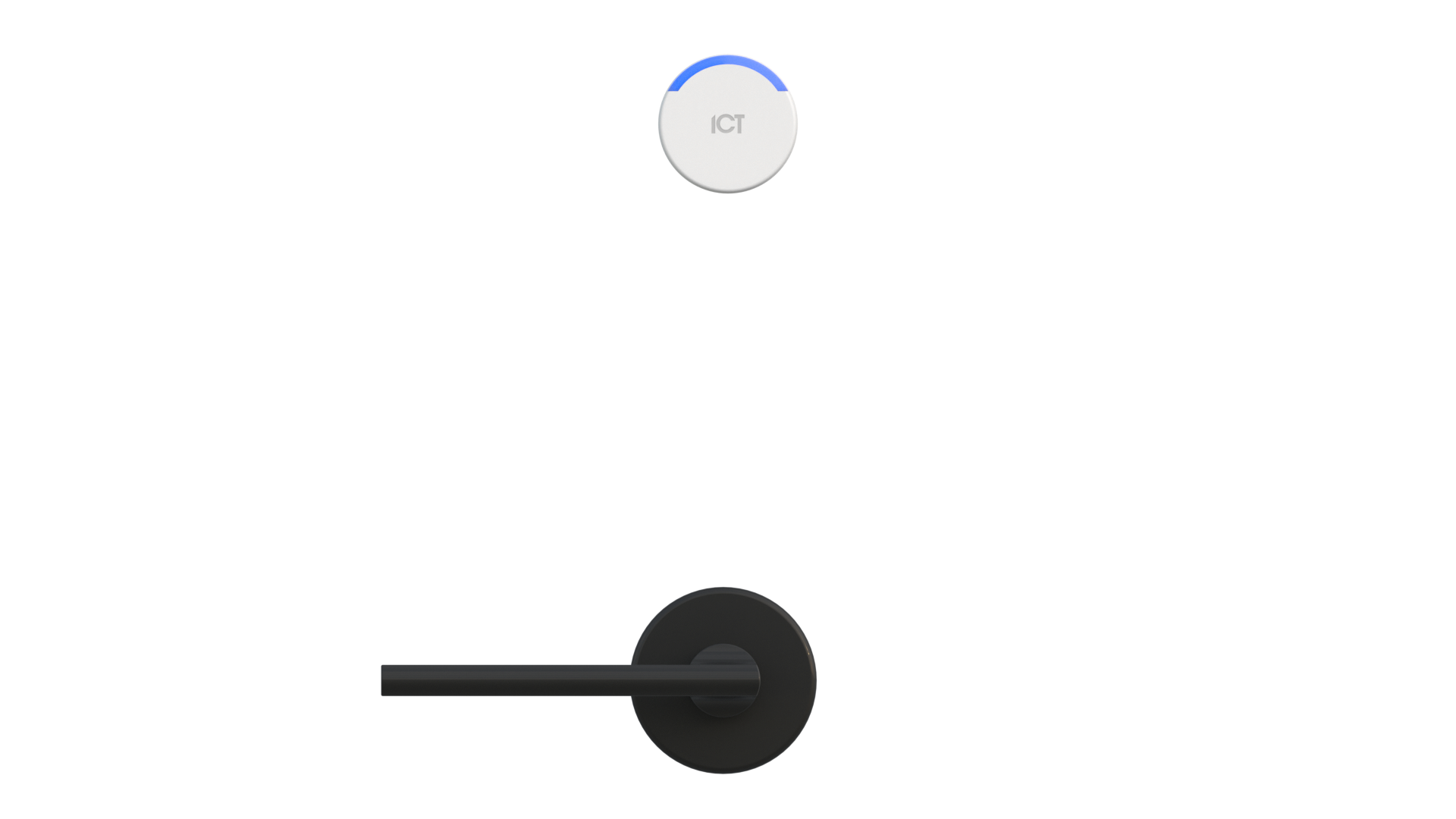

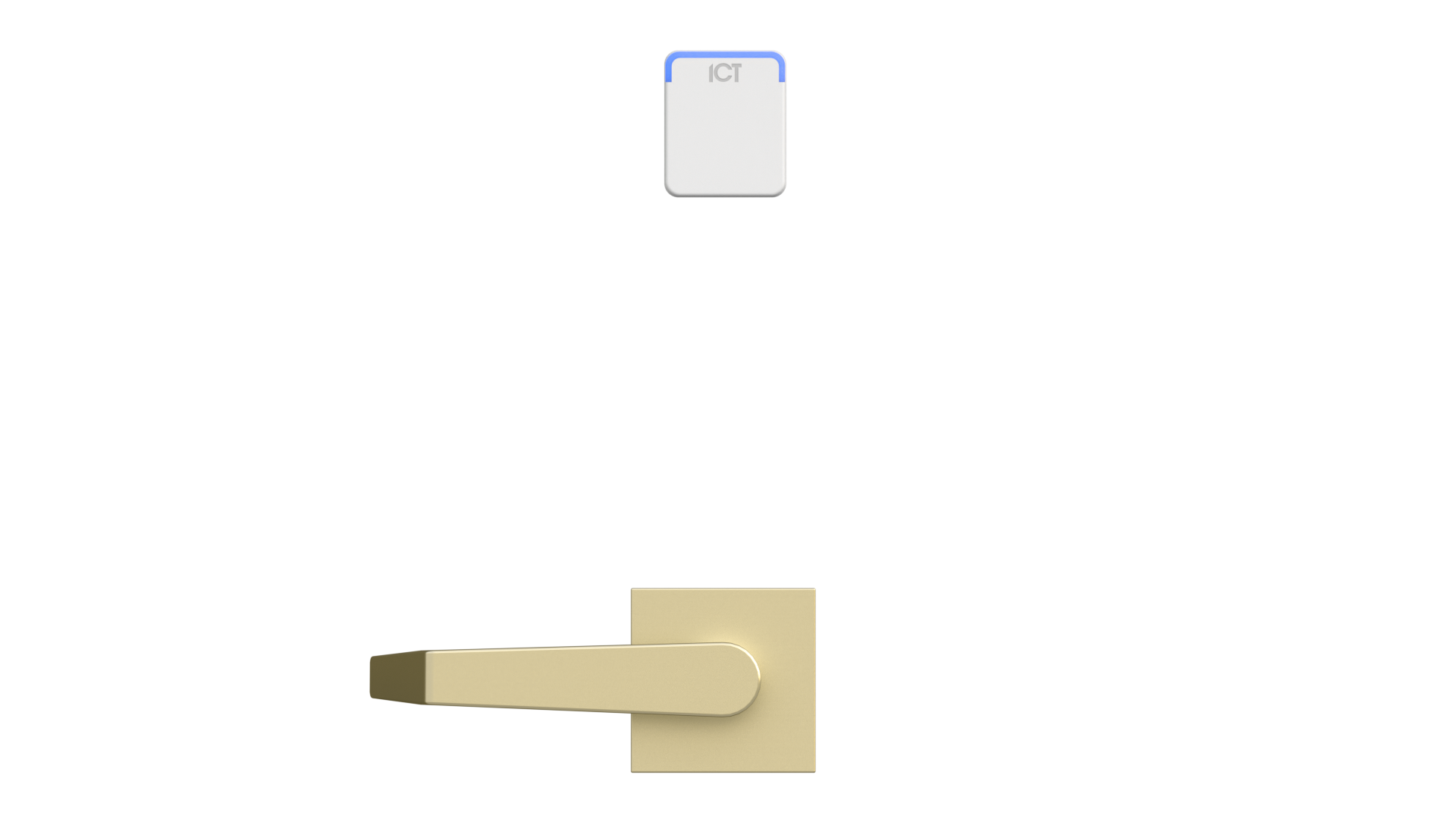

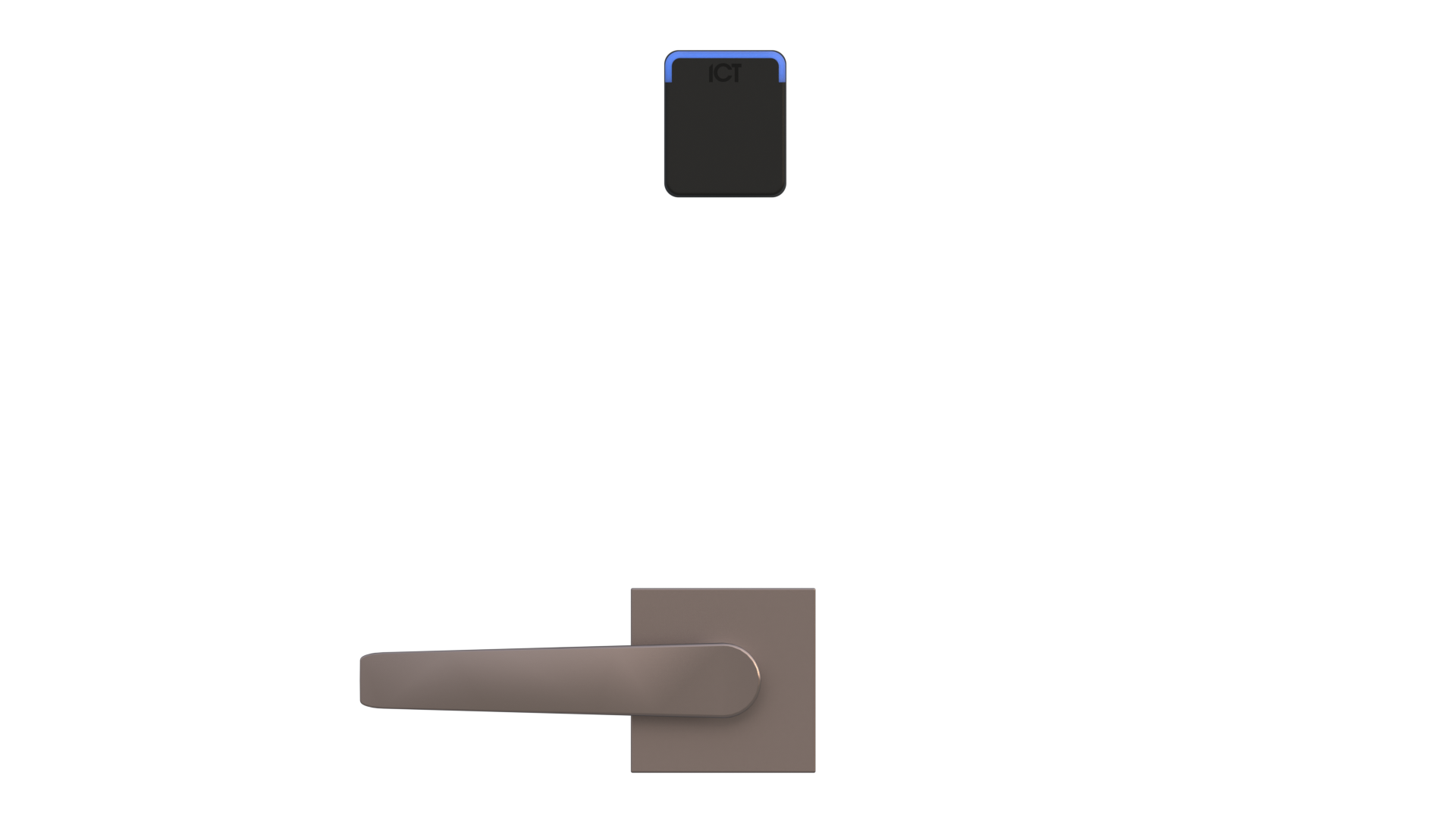

- Sleek reader design with rectangular or circular cover available in white or black
- Integrated LED indicator provides read response and status signaling
- Bluetooth® Wireless Technology
- MIFARE DESFire credential reading
- Reader configuration programmable via the Protege Config App
- Efficient operation provides up to 2 years battery life (40,000 activations)
- USB-C connection to supply power for emergency opening
Features
Aesthetic Options
A range of aesthetic options means there is a look to suit every installation. Choose from nine handle set options — Acadia, Aspiring, Banff, Denali, Glacier, Jasper, Nightcap, Peak, and Sequoia — and seven finishes including Bright Brass, Satin Brass, Satin Bronze, Oil Rubbed Bronze, Flat Black, Bright Stainless, and Satin Stainless.
Native Access Control
ICT wireless locks are a native component of your Protege system. No integration, middleware or third-party interface.
All configuration is performed within your existing Protege setup using standard door programming and utilizes existing records for users, credentials, access levels and other access control features. The solution truly is seamless.
Bluetooth® Mobile Credential Reading
Bluetooth® capability enables you to use your smartphone as your access credential for maximum convenience.
With the Protege Mobile App you can unlock the door using a unique access credential that is entered against your user record in the Protege system and authenticated by a secure cloud based server.
Secure with MIFARE DESFire
Based on the international standard ISO/IEC 14443 Type A, MIFARE DESFire represents the highest levels of physical credential security.
- Fully compliant with the international standard ISO/IEC 14443 Type A
- Multi-application memory to store several services on the same card, allowing for many integration possibilities
- Fast transaction speed
- High security and fraud protection
Convenient Programming
Because offline locks are not actively connected to the network, in many systems they are extremely inconvenient to program. In contrast Protege wireless locks can be configured using the tool you already have in your pocket.
With the Protege Config App, you can simply badge your phone at an update reader to pick up the latest configuration, then send the updates to any lock within Bluetooth® range. The app will automatically update the lock firmware as well, saving you time and money.
Lock Your Doors with Confidence
The mortise lock meets ANSI Grade 1 lock standards and is rated for over 12 million cycles, boasting the following industry-leading construction:
- Stainless steel deadbolt
- Stainless steel anti-friction latchbolt
- Stainless steel deadlatch
- Stainless steel armor plate
- Stainless steel stop works
- Independent single retractor hub
- A single cam for all locking functions
- Four compression springs to ensure smooth controlled operation
- 12 gauge heavy duty alloy steel casing
Hardware Options
The Protege Cartridge Mortise Wireless Lock offers the flexibility to create your own configuration. Simply choose your preferred components from the range of available options to compile your perfect combination.
Specifications
| Ordering Information | |
| Order Codes | Configure this lock in the ICT Protege Lock Selector to see every part code for your chosen finish, handle, and trim. |
| Power Supply | |
| Battery | Alkaline AA 1.5V (x3), UL/cUL Energizer MAX Alkaline |
| Expected Battery Life | Up to 2 years (40,000 activation cycles). Length of battery life not evaluated by UL |
| Emergency Power Supply | USB-C connection allows power supply for emergency opening |
| Operating Voltage | 3.3 - 5.2V |
| Operating Current | 370mA (Peak, Door Activation) |
| Average Operating Current | 82µA (Standby Mode) |
| Memory | |
| Event Memory Storage | 40,000 log entries |
| Communications | |
| Frequency | 13.56 MHz ISO/IEC 14443 Type A |
| Card Read Range | 20mm (0.79") (Typical) |
| Tag Read Range | 15mm (0.59") (Typical) |
| Bluetooth® Wireless Technology | |
| Bluetooth® Read Range | Proximity mode: up to 0.5m (1.6ft) configurable; Action unlock (shake): up to 5m (16.4ft) configurable |
| Bluetooth® Electronic Credential Transmission Technology | Bluetooth® version 5.2 compliant; Proprietary data exchange protocol. AES-128 encrypted; Credentials can be distinguished by unique site code and card number |
| Bluetooth® Wireless Device | Protege Mobile 1.0.x |
| Lock Specification | |
| Lock Type | Grade 1 mortise lock |
| Casing | 12 gauge heavy duty dichromated alloy steel |
| Faceplate | Stainless steel. Beveled. H x W 203.2 x 31.75mm (8 x 1.25") |
| Strike Plate | Stainless steel. Non-handed. Curved lip |
| Latchbolt | Stainless steel. Anti-friction. 19mm (0.75") throw |
| Deadbolt | Stainless steel. 25.4mm (1") throw |
| Handle Rotation | 35° |
| Door Thickness | 44.45 to 50.8mm (1.75-2"): Standard; 57.15mm (2.25"): Requires Thick Door Kit 1; 63.5mm (2.5"): Requires Thick Door Kit 2; 69.85 to 76.2mm (2.75-3"): Requires Thick Door Kit 3; Greater than 76.2mm (3"): Custom order |
| Control Hardware Dimensions | |
| Reader Cover - Circular (Ø x D) | Ø45 x 12.5mm (Ø1.77 x 0.49") |
| Reader Cover - Rectangular (H x W x D) | 48 x 40 x 12.5mm (1.89 x 1.57 x 0.74") |
| Control Cartridge (H x W x D) | 95 x 42.8 x 18.9mm (3.74 x 1.69 x 0.49") |
| Armor Plate (H x W) | 150 x 31.7mm (5.9 x 1.25") |
| Operating Conditions | |
| Operating Temperature | UL/cUL 0°C to 49°C (32°F to 120°F) |
| Storage Temperature | -10°C to 85°C (14°F to 185°F) |
| Humidity | 0%-93% non-condensing, indoor use only (relative humidity) |
| Mean Time Between Failures (MTBF) | 520,834 hours (calculated using RDF 2000 (UTE C 80-810) Standard) |
Downloads
User Documentation
Supporting Material
Certifications & Warranties
Regulatory Notices
Industry Canada
ICES-003
This is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.
CAN ICES-3 (A)/NMB-3(A)
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Class B.
This equipment complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
Accessibility
Protege wireless lock hardware is designed to adhere to legal and industry guidelines:
Americans with Disabilities Act (ADA)
International Code Council A117.1 (ICC A117.1)
