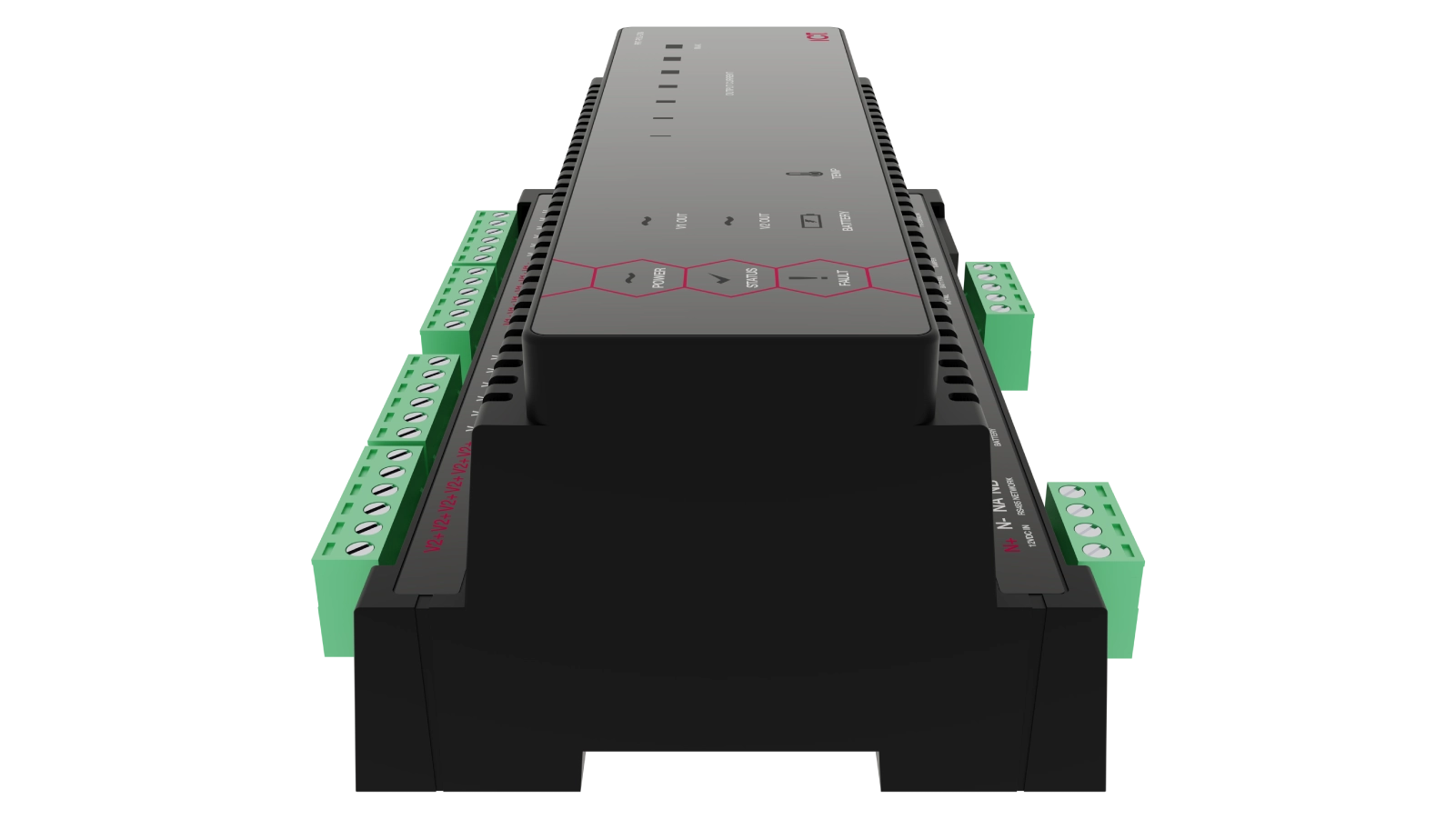

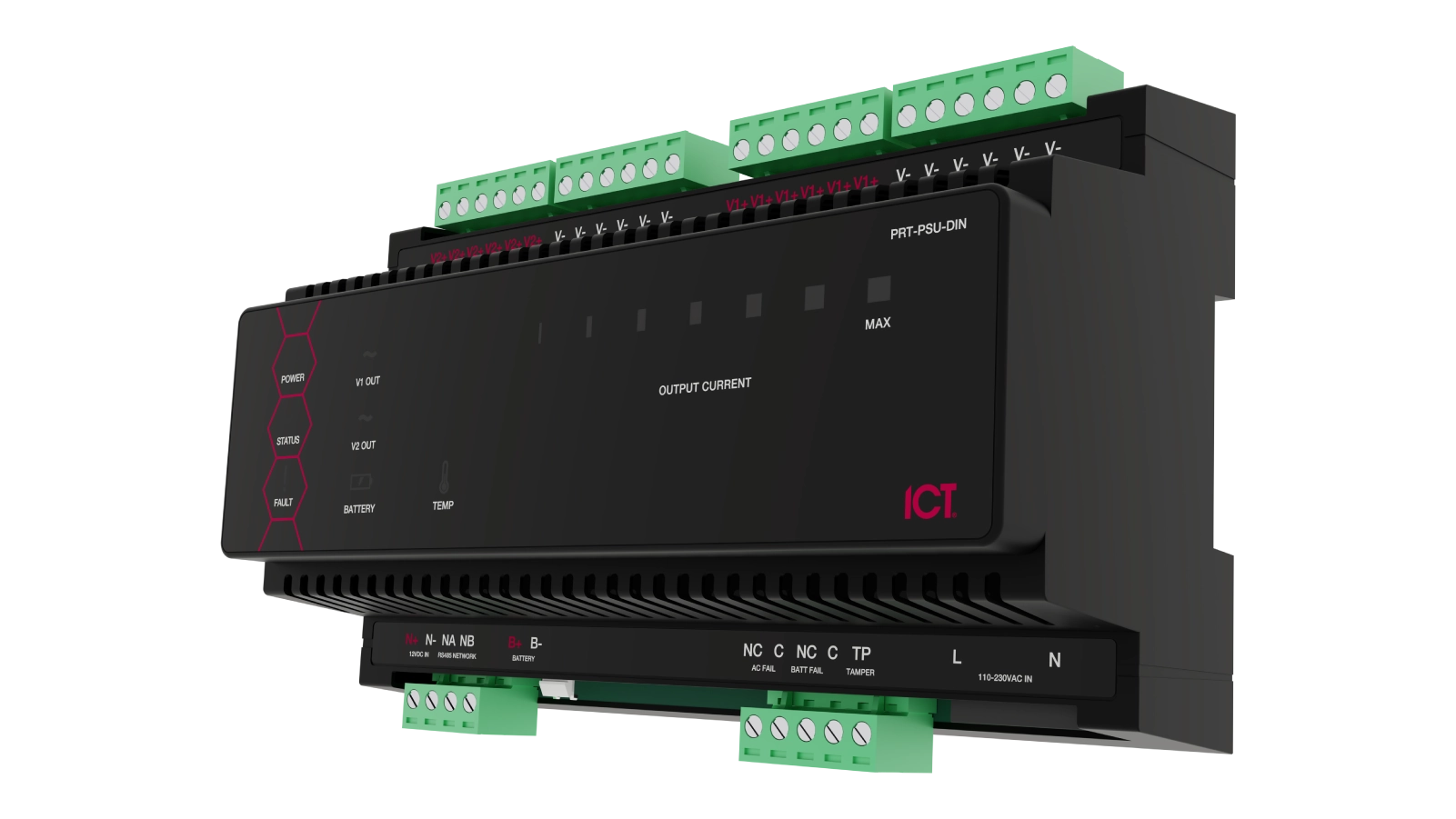

Protege DIN Rail
10A Intelligent Power Supply
PRT-PSU-DIN-10A
The Power Supply Unit delivers reliable 12VDC power to the Protege system, available in a 5A and 10A model with the same form factor. You can power your ICT or external modules from one space saving unit.
Equipped with a built-in battery charger and battery backup, the system ensures uninterrupted power during outages, while the boot-from-battery feature lets you safely replace batteries without compromising site security, even during extended power losses. Its intelligent charging capabilities optimize performance, delivering enhanced efficiency and reliability across your entire setup.
This 10-amp Power Supply Unit is only available in Australia, New Zealand, and Asia.
- Enhanced power output supports more devices from a single power supply
- LED indicators provide immediate feedback on module faults, input power, output status, battery state and temperature
- Boot-from-battery feature allows safe battery replacement during extended outages
- Enclosed design provides durability and protects internal circuitry from physical damage or electrostatic discharge
- Built-in RS-485 for seamless connection to the Protege encrypted module network
Features
Greater Value
With its enhanced power capabilities, this upgraded unit supports more devices from a single power supply allowing you to provide your customers with a scalable, high-performance solution that delivers exceptional ROI.
Status at a Glance
The LED indicators provide immediate feedback on the status of the power supply. LEDs indicate: input voltage, PSU status and fault, output voltage status and current being consumed, and battery and temperature state. In Protege GX these can be viewed live, monitored on a status page or floor plan, or logged for review at any time.
Increased Site Safety
Keep your Protege system running smoothly during extended power outages with a hassle-free battery replacement.
Built to Last
The enclosed design provides more durability and protects internal circuitry from physical damage or electrostatic discharge.
Power Supply I/O
Simplify communication with the built-in RS-485, seamlessly connecting the PSU to the Protege GX network. The PSU has two programmable outputs that operate as status outputs when the system is offline, along with a dedicated enclosure tamper input.
Specifications
| Ordering Information | |
| PRT-PSU-DIN-10A | Protege DIN Rail 10A Intelligent Power Supply |
| Power Supply | |
| Mains Input | 110-240VAC System (50/60Hz) |
| Mains Input Operating Current | 1.0A (at 240VAC) - 2.5A (at 110VAC) |
| DC Output Voltage | 12VDC System (10.4-14.0VDC) |
| DC Output Current | 10A, 13.5VDC |
| DC Output Transient Overload Current | 10.5A, 13.5VDC |
| Maximum Overload Current | 10.2A |
| Battery Charging Current | 600mA (Typical), 630mA (Maximum) - Additional to the DC output |
| Battery Low | 11.0V |
| Battery Disconnect | 9.4V |
| Battery Restore | 11.0V |
| Communication | |
| RS-485 | Isolated Module Network |
| Outputs | |
| Outputs | 2 Solid-State Relay Outputs, 50mA 12V Max each |
| Inputs | |
| Tamper | Dedicated Hardware Tamper Input |
| Trouble Inputs | 8 (internal) |
| Dimensions | |
| Dimensions (L x W x H) | 157 x 90 x 60mm (6.2 x 3.5 x 2.4") |
| Net Weight | 500g (17.6oz) |
| Gross Weight | 610g (21.5oz) |
| Operating Conditions | |
| Operating Temperature | UL/cUL 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F) |
| Storage Temperature | -10° to 85°C (14° to 185°F) |
| Humidity | 0%-93% non-condensing, indoor use only (relative humidity) |
Downloads
User Documentation
Firmware
Supporting Material
Certifications & Warranties
Regulatory Notices
RCM (Australian Communications and Media Authority)
This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.
AS/NZS 2201.1 Class 5
Protege systems conform to AS/NZS 2201.1:2007 Class 5 intruder alarm systems standards for the construction, operation, performance and installation of intruder alarm equipment and systems installed in clients' premises.
CE - Compliance with European Union (EU)
Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED) 2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.
This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.
UK Conformity Assessment (UKCA) Mark
This equipment carries the UKCA label and complies with all applicable standards.
UL/ULC (Underwriters Laboratories)
UL2610 for Central-Station Burglar-Alarm Units
UL294 for Access Control System Units
CAN/ULC-S304 for Signal Receiving Centre and Premise Burglar Alarm Control Units
CAN/ULC-S319 for Electronic Access Control Systems
CAN/ULC-S559 for Fire Signal Receiving Centers and Systems
Industry Canada
ICES-003
This is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.
CAN ICES-3 (A)/NMB-3(A)
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Class A.
This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
