EliteSuite Touch Sense
LCD Keypad
ELT-KLCS
The EliteSuite Touch Sense LCD Keypad provides a sleek, user friendly human interface to the EliteSuite System, an advanced technology security system specifically designed to enhance the functionality of condominium and apartment security with flexible local monitoring and offsite communication.
- 8 local user codes
- Stay, force, and instant arming
- Activation of 3 reportable panic events (panic, medical, and fire)
- Individual reportable duress code for each LCD Keypad
- 2 inputs (4 using duplex mode) that can be used to perform system alarm and automation functions, expandable using slave keypads to 16 inputs
- 1 multi-function output
- Fire zone functions
- Available in black or white
Features
Apartment Condominium Control
Operating in the Condominium Control mode the keypad provides a complete standalone 4 input, 8 user local alarm system:
- Operates autonomously when communication fails, without the need for a Protege EliteSuite Integrated System Controller
- Locally program siren, entry and exit delay timers and configure the operation of up to 8 users with arming and disarming options
- 4 inputs (duplex mode) can be used for delay, instant, follow, fire, fire delay and 24 hour operation
- Conforms to the UL/ULC fire control specifications
- Configuration and addressing of the keypad is achieved by a simple easy to follow configuration menu available during initialization
- Communicate with up to 4 slave keypads for expansion to 18 inputs and operation of multi-floor penthouse apartments
Specifications
| Ordering Code | |

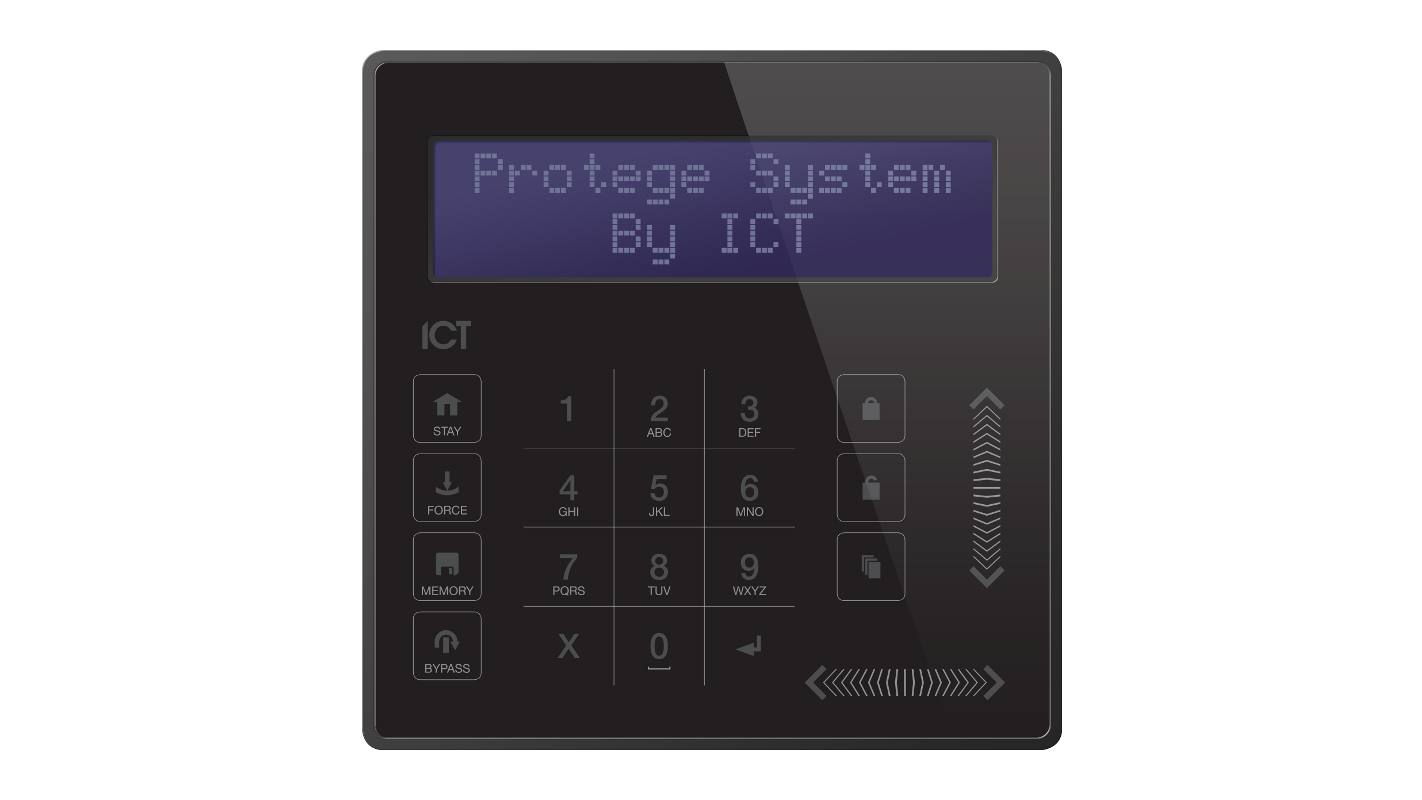

| ELT-KLCS-B | EliteSuite Touch Sense LCD Keypad - Black |

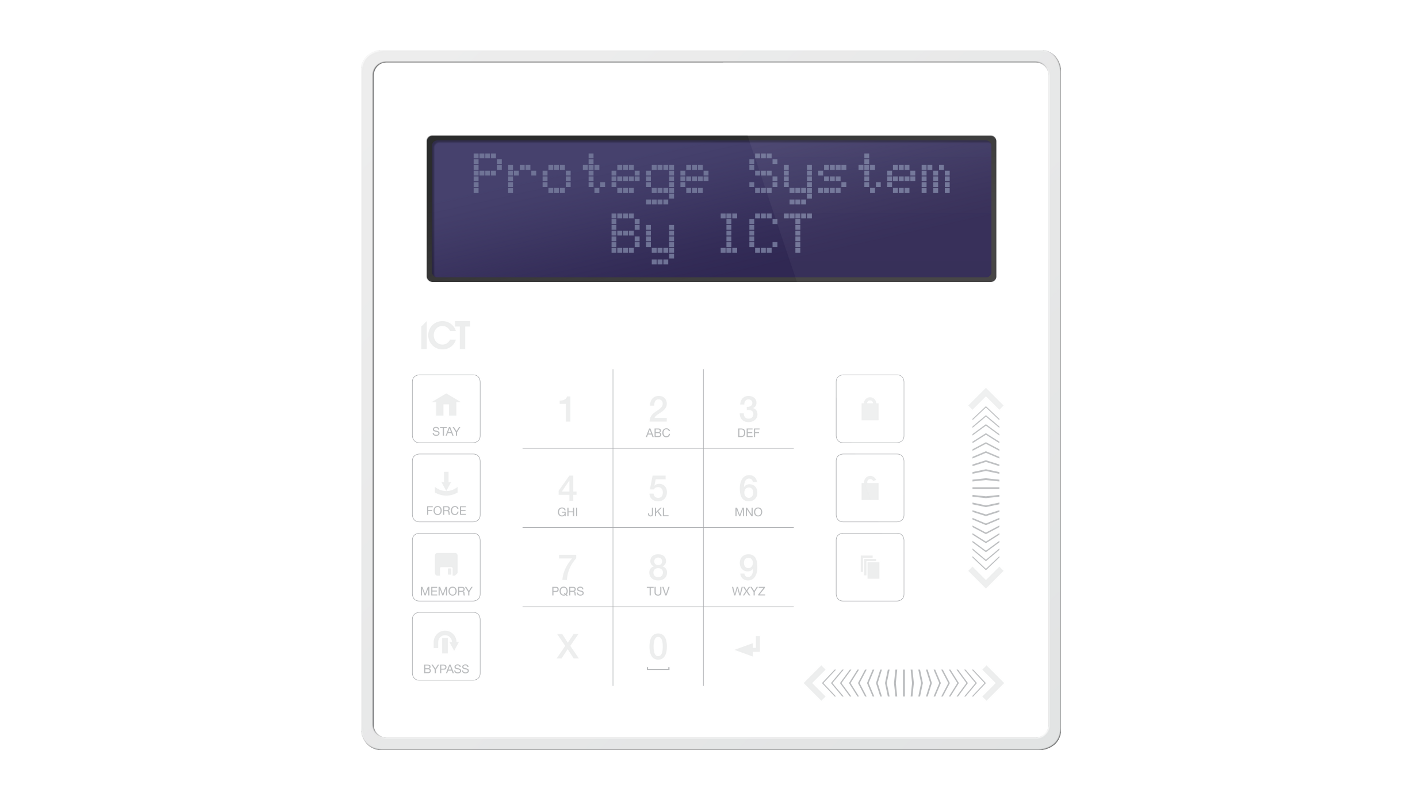

| ELT-KLCS-W | EliteSuite Touch Sense LCD Keypad - White |
| Power Supply | |
| Operating Voltage | 11VDC to 14VDC |
| Operating Current | 60mA (95mA Max) |
| User Interface | |
| User Interface Display | Energy smart backlit LCD 16 x 2 alphanumeric display with enhanced viewing angle |
| User Input | Combined 23 key capacitive touch keypad with 3 system status LEDs |
| Inputs | |
| Inputs | 2 standard or 4 using input duplex mode |
| Outputs | |
| Outputs | 1 open collector (50mA Max) output. Programmable for all output functions. |
| Dimensions | |
| Dimensions (H x W x D) | 125 x 125 x 20mm (4.92 x 4.92 x 0.79") |
| Weight | 318g (11.21oz) |
| Operating Conditions | |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| Storage Temperature | -10° to 85°C (14° to 185°F) |
| Humidity | 0%-93% non condensing, indoor use only (relative humidity) |
Downloads
User Documentation
Firmware
Supporting Material
Certifications & Warranties
Regulatory Notices
RCM (Australian Communications and Media Authority)
This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.
CE - Compliance with European Union (EU)
Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED) 2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.
This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.
Industry Canada
ICES-003
This is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.
CAN ICES-3 (A)/NMB-3(A)
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Class A.
This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
